GPS - tGPS_Mini_BoB

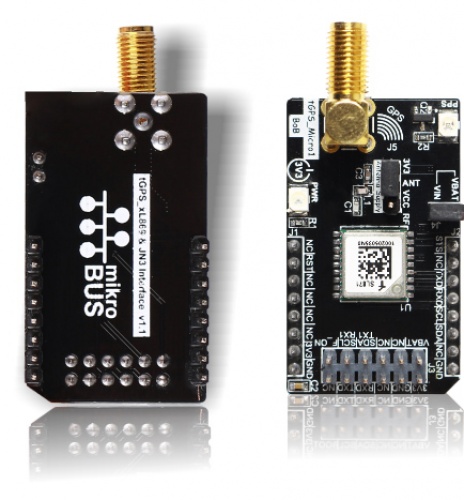

"tGPS BoB " is a formative with a microBUS structure. It is an effective and easy solution for adding GPS functionality to your design.It features the Telit SL869 - V2S  module, a SMA connector for an GPS antenna also it has two LEDs for PPS and PWR. tGPS BoB can be interfaced with the target board microcontroller via microBUS UART ( Rx, Tx),  lines. It has a LED diode in order to  power indicator.it can function on 3.3 V power supply  only.

Features :

*Standards: NMEA

*Chipset: Mediatek MT3337 core

*Acquisition Chanels: 66

*Positionnal Accuracy: 3 m

*Sensitivity:

Acquisition: -148dBm, Navigation: -163dBm, Tracking: -165dBm

*Current:

Acquisition: typ 27 mA, Tracking: typ 24 mA,

*Standby: typ <6.5 uA

*GNSS Standards and bands supported: GPS L1

*Assisted GPS

*Header Form Factor

*PCB Dimensions: 43 x 25.1

*PPS (Red) -  Power(Green) LEDs

Applications :

*Vehicle Tracking

*Personal Tracking

*Pet Tracking

*Asset Tracking

*Road Navigation Devices
