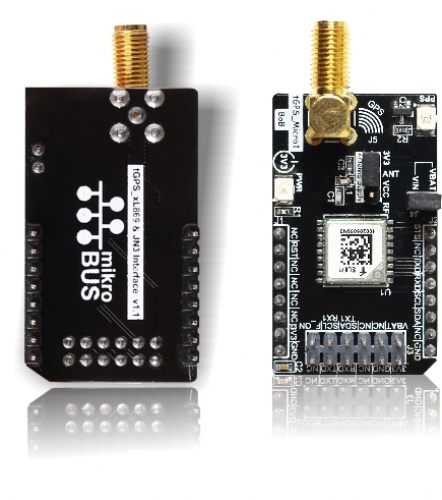

" tGPS BoB " is a formative with a microBUS structure. It is an effective and easy solution for adding GPS functionality to your design. It features the Telit SL871 module, a SMA connector for a GPS antenna also it has two LEDs for PPS and PWR. tGPS BoB can be interfaced with the target board microcontroller via microBUS UART ( Rx, Tx), lines. It has a LED diode in order to power indicator. It can function on 3.3 V power supply only.
Features :
*GNSS (GPS, Glonass, Galileo, QZSS, Compass)
*Standards: NMEA
*Chipset: Mediatek MT3333 core
*Acquisition Chanels: 48
*Positionnal Accuracy: 3 m
*Sensitivity:
Acquisition: -148dBm, Navigation: -163dBm,
Tracking: -165dBm
*Current:
Low power Tracking: 0.4 mA
Full power Tracking: 22 mA ( GPS+GLO )
Full power Acquisition: 24 mA ( GPS+GLO )
*Compliant with GPS and GLONASS Standards
*Header Form Factor
*PCB Dimensions: 43 x 25.1
*PPS (Red) - Power(Green) LEDs
Applications :
*Vehicle Tracking
*Personal Tracking
*Pet Tracking
*Asset Tracking
*Road Navigation Devices
